95% Alumina Ceramic Tile as Wear Resistant Liner

Basic Info.

Model NO.	chemshun ceramics
Installation Method	Bolt Fastening
Material	Alumina Ceramic, Alumina Ceramics
Shape	Custom Shape, Plain, Weldable, Interlocking, Curved
Surface Finish	Smooth
Thickness	Customized Thickness
Standard	ISO
Item	Alumina Ceramic Tile with Interlocking
Application Field	Elbows, Chutes, Hopper, Slurry Liner, Coal Valves
Density	3.65g/cm3
Size	Customized
Advatage	Reduce Down Time and Maintance Cost
Alumina Content	95% Al2O3
Industry	Mining, Steel Plant, Coal, Power Plant
Usage	as The Alumina Ceramic Lining Tile
Applied Equipment	Conveyor Skirt Liners, Stacker and Reclaimers

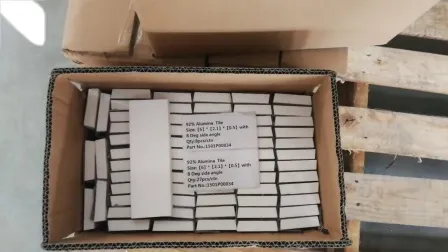

Transport Package	Paper Cartons+Pallets
Specification	according to your demand
Trademark	CHEMSHUN CERAMICS
Origin	Pingxiang, P. R. China
HS Code	69091200
Production Capacity	5000 Tons /Year

Product Description

95% Alumina Ceramic Tile as Wear Resistant Liner

Product DescriptionCeramic Wear-Resistant Trapezoidal Tile are widely used as pipe tile liner, it can effectively protect industrial equipment from abrasion damage, except for taper tile, we also can produce arc tile liner, ceramic cylinder, alumina hexagonal tile etc.Chemshun ceramic pipe tile liner is of wear resistance, impact resisting, easy operation, etc., and it is an ideal abrasion resistant material of bulk material transfer equipment in iron & steel works, thermal & power plants, port and terminals, cement. Alumina ceramic curved plate and trapezoidal taper tile fabricated as pipe linings for its radian and angle specially designed, best choice of cyclone, bend pipe, orifice, transition, inner cone equipment. Chemshun can offer engineering ceramics and pre-fabricated ceramics lined equipment for customer's abrasion resistant project drawings.Feature· Excellent corrosion resistance property· Easily handled size and weight· Excellent heat resistance property· Excellent impact resistance property· Fast and safe installation· Lower production and maintenance cost

Chemshun Ceramic Advantages· Professional technical team to afford CAD designs· Professional installation team to afford install service· Well established process as per international standards· Accept the standard and pre-engineered tilesDimensions

Application in Industries

Technical Data Sheet

95% Alumina Ceramic Tile as Wear Resistant Liner

Length	Width	Thickness
mm	mm	mm
152	53/49	25
150	50/45	40/50/60/70/80
150	33/28	13
150	50/46	25
139	38/39	15
75	50/45	60
50	20/19.3	7
20	20/19.3	7

Industry	Equipment system	Equipment parts
Cement	Pre-blending system for crashing limestone and crude fuel	Chute, bunker, pulley lagging, discharge cone
	Raw mill system	Feed chute, retaining ring, scraper plate, seal ring, pipeline, bucket guard, cyclone, powder concentrator body, bunker
	Cement mill system	Chute, bunker, fan vane wheel, fan casing, cyclone, circular duct, conveyer
	Ball mill system	Pulverizer exhauster's body and vane wheel, powder concentrator's body, pulverized coal's pipeline, hot air duct
	Sintering system	Inlet/outlet bend, wind value plate, cyclone, chute, dust collector's pipe
	Afterheat system	Separator's pipeline and wall
Steel	Raw material feeding system	Hopper, silo
	Batching system	Mixing bunker, mixing barrel, mixing disk, disk pelletizer
	Sintered material transport system	Hopper, silo
	Dedusting and Ash discharge system	Dedusting pipeline, bend, y-piece
	Coking system	Coke hopper
	Medium-speed mill	Cone, separation buffles, outlet pipe, pulverized coal's pipeline, burner cone
	Ball mill	Classifier, cyclone separator, bend, powder concentrator's inner shell
Thermal power	Coal handling system	Bucket wheel machine, coal hopper, coal feeder, orifice
	Ball mill system	Separator's pipe, elbow and cone, coal mill's elbow and straight tube
	Medium-speed mill	coal mill body, separation buffles, cone, pipeline, elbow
	Fall mill	Pulverized coal's pipeline and elbow
	Dedusting system	Dedusting's pipeline and elbow
	Ash discharge system	Fan duster's shell, pipeline
Port	Transporting material system	Bucket wheel machine's disk and hopper, transfer point's hopper, unloader's hopper,
Smelting	Transporting material system	Measuring hopper, coke hopper, vibrating screen's chute, head valve, Intermediate bin, tail bin
	Batching system	batch hopper, mixing machine
	Burning system	Ash bucket, pump calcine tube, hopper
	Dedusting system	Dedusting's pipeline and elbow
Chemical	Transporting material system	Hopper, silo
	Dedusting system	Dedusting's pipeline and elbow
	Processing equipment	Vibromill liner
Coal	Coal handling system	Bucket wheel machine, coal hopper, coal feeder
Coal	Coal washing system	Hydrocyclone
Mining	Transporting material system	Hopper, silo

S.No.	Attributes	Unit	CHEMSHUN 95
1	Alumina Content	%	95
2	Density	g/cc	>3.65
3	Color	-	White
4	Water Absorption	%	0
5	Flexural Strength	Mpa	320
6	Moh's Density	Grade	9
7	Rock Well Hardness	HRA	87
8	Vickers Hardness(HV5)	Kg/mm2	1200
9	Fracture Toughness (Min)	MPa.m1/2	3-4
10	Compressive strength	Mpa	870
11	Thermal Expansion Coefficient (25-1000ºC)	1x10-6/ºC	8.1
12	Maximum operation temperature	ºC	1500
